Southern Alberta Balloon Launch Experiments
March 1st, 2006

Tony, a teacher from Hanna, Alberta, contacted me in October of 2005 after finding the BEAR Web Site and that it was a group, also in Alberta, as he wanted to launch a high altitude balloon and do some aerial photography with his students and was looking for help to get started as this was all new to him. Tony also knew little about amateur radio and nothing about APRS needed to track a balloon so James, VE6SRV, was involved and the two of us have been helping Tony get up to speed since last October. Tony had already scheduled and made arrangements for a balloon launch on May 20th, 2006, so there was little time for him to learn and do everything that needed to be done by himself, including studying for and getting an amateur radio license, so James and I offered to lend him an APRS tracker and I also offered to help prepare a digital camera for him. The tracker was assembled using BEAR's GPS receiver and a Pocket Tracker that James had and the camera is a Canon PowerShot S200 Digital IXUS V2 that Tony purchased and needs a way to be triggered to take an image every few minutes.

April 14th, 2006

March was spent trying to resolve an unexpected problem with Tony's camera after it was modified. Read all about My Canon Camera Modification & Trying to Deal with Canon's Famous E18 Lens Error which left Tony with no camera for his balloon flight and no time to try and modify another to take photo's automatically so Tony did what was originally considered which was to simply purchase one of the more expensive cameras which have a built-in timer for this function, like the new Nikon P2 camera he now has.

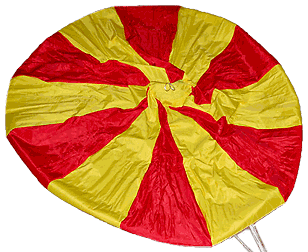

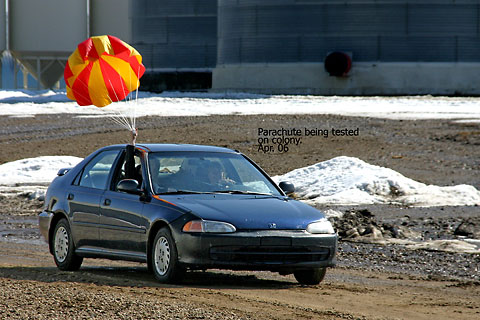

Tony now also has this bright, colourful, new parachute to use that his grade 8 class girls have been busy sewing for him.

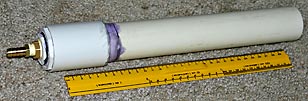

Tony has finished making this balloon filling adapter and has been studying for his amateur radio license, which he recently received.

Congratulations Tony, VA6TNY


And the APRS Tracker we promised to lend Tony is now finished.......

and Construction of the Tracker Antenna was completed the week before the launch.


May 19th, 2006

Besides James & myself, Curtis, VE6AEW, & Carl, VE6GGG, also accepted Tony's offer of a place to stay and after travelling to Hanna on Friday afternoon to help launch and recover SABLE-1 the next morning we all made ourselves at home and spent the evening visiting and making last minute preparations.


Saturday - May 20th - 2006

The balloon was launched at 8:09 AM after a 9 minute hold which wasn't bad considering Tony's students were doing most of the launch work and all of the questions, instruction and learning that took place. Time was also spent questioning if a launch should even be attempted with the 40 km/hr winds that were gusting to 60 km/hr, but it was felt we had to at least try with the school term ending soon and this the only chance for some students to participate plus considering some of us traveled hundreds of miles to help. The wind wouldn't affect inflating the balloon with helium as we had a large wash bay to do this in, but the question was how difficult handling an inflated balloon in the wind may be and what other problems the wind may cause.

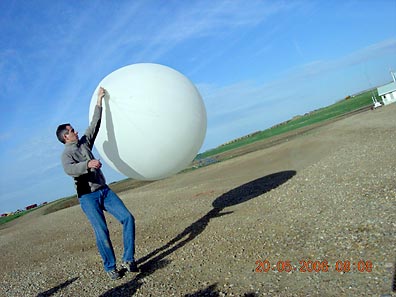

Trying to handle the balloon in the wind was worse then expected and the photo taken at 8:08 by the payload camera of Tony with the balloon doesn't even come close to showing how difficult it was to keep the wind from blowing the balloon about and into the gravelled earth repeatedly. Something had to be done quickly before the balloon was damaged so Tony released it while I held on to the payload and tried to move further away from the buildings with the hope the balloon would rise and stay out of the gravel. It sounded like a good idea at the time, but with the balloon even less restrained at the end of a long leash the wind was now able to blow the balloon about even more wildly and harder down into the gravel.

The only choice now was to simply launch from where I was, but the tracker antenna had become tangled in the payload and parachute support lines so we had to watch as the wind smashed the balloon into the gravel even harder a few more times as we tried to untangle the antenna in a state of panic.

This short delay ended up almost perfectly synchronizing payload camera photos to the launch time and . . .

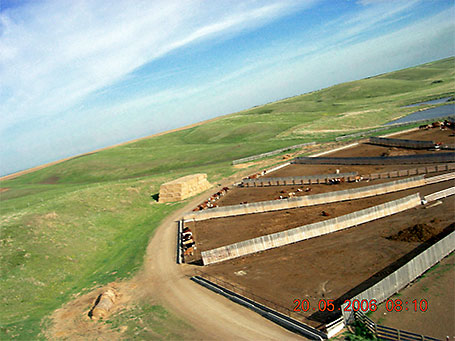

1 min. later at 8:10 the next photo, also looking NW, shows the balloon has gained some altitude as it passes by corrals and heads towards the hills further

But 10 sec's later the battle appeared to be won when the balloon rose ≈ 100 ft. as it passed over the highest and last hill before it disappeared from view behind it 30 sec's later as everyone watched.

James brought and setup a portable APRS station and digipeater to allow the students to follow the progress of the balloon and ourselves as we tracked it and to help ensure we could receive each others data transmissions as the nearest other digipeater was >100 miles away.

However data transmissions suddenly stopped being received from the balloon shortly after it disappeared from view, so we quickly prepared to give chase to hopefully regain sight of and follow it to where ever it landed. But someone on a nearby hill top then reported watching it become tangled up in trees a few miles away and payload camera photos later showed what had happened while the balloon was out of sight and why tracking data suddenly stopped being

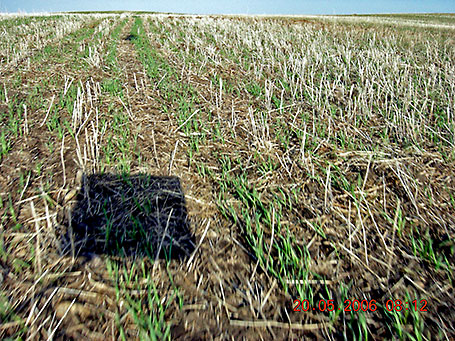

1 minute later at 8:12 the payload was even closer to the ground and low enough that the antenna dangling below it would have been bouncing wildly about as it was dragged across the rough field. This obviously is what damaged the antenna and caused tracking data to no longer be received after this

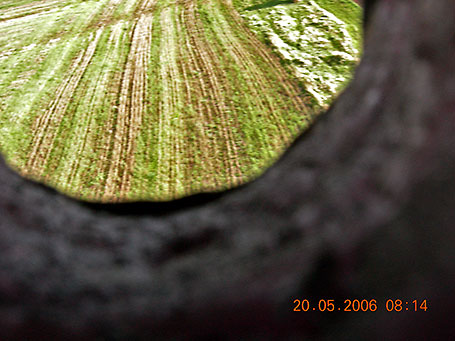

At 8:14 the payload package was airborne again with the camera knocked out of place now after several minutes of being bounced across rough

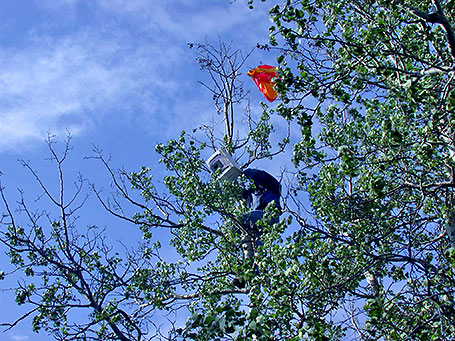

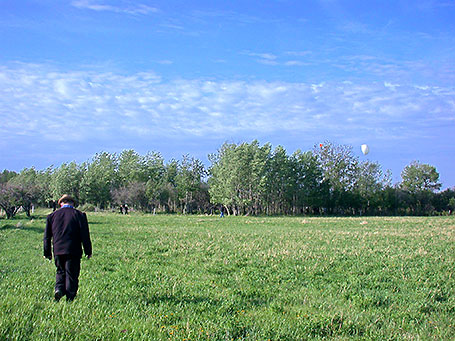

It was a short walk across a pasture from the road where we left our vehicles to where SABLE-1 was tangled in the upper braches of some trees and where everyone was asking the same question "How are you going to get it down?" The answer was easy as James was with us, the one who made the long swim to recover BEAR-2 and one who wouldn't likely hesitate very long to climb and recover SABLE-1 from tree tops as

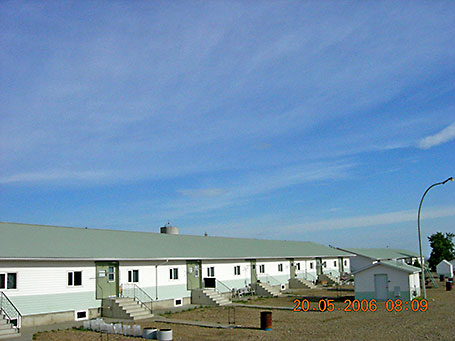

sec's after launching it at 8:09 it took this photo looking NW as the wind began blowing it westward. Everything cleared the end of this first building OK, but the balloon had trouble gaining altitude and the payload package wasn't as lucky with another building further west where it hit and bounced off the corner of roof as it passed by.

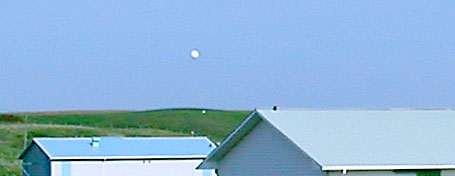

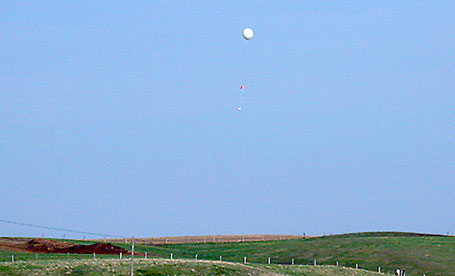

From the ground it appeared the balloon may be loosing its fight with the wind as it barely clears the first hill.

After disappearing from view at 8:11 the balloon continued to travel quickly in the 40 km/hr winds, but was back down much lower again with the payload just a few feet above the ground after being over a 100 ft higher, even though the ground elevation was lower then the hill just cleared and it continued to become less until 190 ft lower where the arrow shows the balloon was found tangled up in trees.

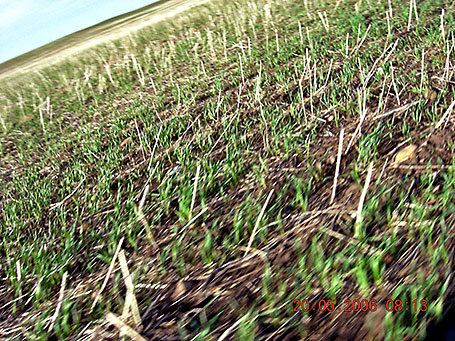

At 8:13 the payload was still moving very quickly, but it and the antenna were now both being dragged across the field and bouncing along on the ground.

The final photo at 8:15 shows the camera was shifted even further out of place from another encounter with the ground or from perhaps simply rolling freely about in the payload container. Being the last photo also means the camera off button was bumped sometime during the next minute and was likely when the payload box encountered the trees it was found in.

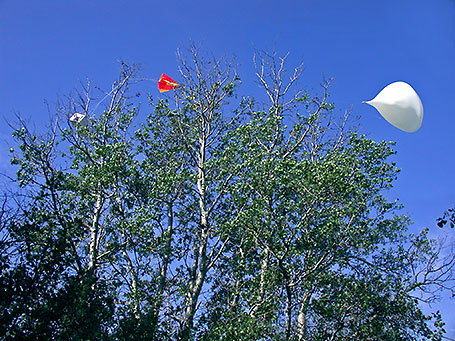

The 40 km/hr winds stretched the balloon out into various shapes as it tugged on the payload line and danced about.

(left) Seeing the payload & antenna instantly answered why data transmissions were not received as 95% of the antenna element was missing. Only the small stub of brass tubing used to splice on the longer missing element remained which had snapped from stress as the antenna was dragged across the fields.

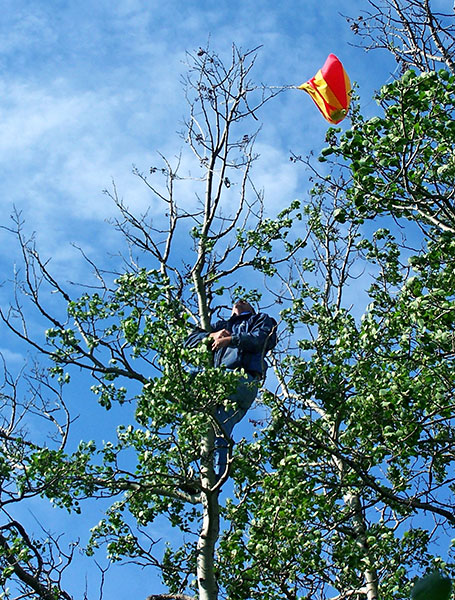

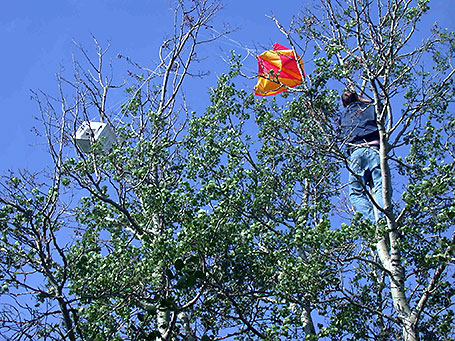

As expected, James was the one who volunteered to climb not just one, but two, difficult to climb trees. First one to cut the balloon free (upper right) and then, after figuring out how to get to the parachute (lower left), to cut it free (lower right).

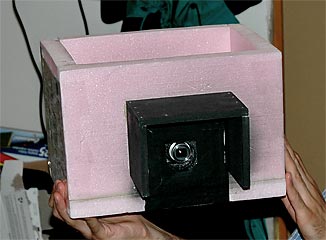

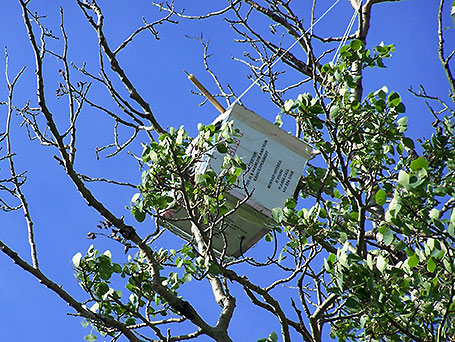

Then a second tree had to be climbed to cut the payload container free and recover the camera (below).

SABLE-1 travelled about 2.5 miles during it's 7 minute flight making its average speed 21.4 mph which is close to the 40 km (24.8 mph) wind speed reported by the weather office. The balloon would not have been travelling as fast while dragging the payload across fields however, so its airborne speed was likely close to the wind speed which was likely even a bit higher than reported.


Even without GPS data, using Google Earth, land features and shadows it was possible to locate quite accurately where, and in which direction, 6 of the 8 payload photos were taken and determine SABLE-1's path, speed, distance travelled and what happened while SABLE-1 was out of view.

If you have Google Earth installed, download SABLE-1.kmz and follow SABLE-1 from where it launched to where it became tangled up in trees and was recovered. If not, get & install it from Google Earth first.

So why did SABLE-1 never get much higher than 100 feet?

My first thought was that down drafts from the strong wind were the reason, but after writing the above and a lot of thought, I'm sure that if winds had been much lighter to permit the free lift to be confirmed outside after everything strung together and tied to the balloon, we would have found that it was much less than the 1 lb we thought it was. Different scales of unknown accuracy were used to weigh individual SABLE components and the weights were totalled, but scale accuracy errors and even small errors due to the rounding off of a number of individual weights all add up quickly.  It would have been better to use a single scale of known accuracy for all measurements, but best is to simply weigh everything making up the balloon's load together, as a single item. And it's difficult to measure balloon lift using a scale and easier to simply add 1 lb, for free lift, to the weight the balloon must carry aloft, subtract the filling device weight, fill a plastic pop bottle with sand or water until it weighs the same as this result and tie the bottle to the filling device while the balloon is filled with helium. When the balloon, filling device and bottle all become neutral buoyant the balloon will contain the correct amount of helium.

Update: Further information regarding free lift has been found.

When precipitation, icing, or terrain turbulence is occurring, sufficient free lift shall be provided to ensure that the balloon will not descend or float. An increase of 100 grams free lift is typically sufficient to compensate for an increase in the weight of the train resulting from light precipitation. Under light or moderate icing conditions, moderate to heavy precipitation, or terrain turbulence induced by high surface winds, an increase in free lift of 200 to 300 grams will usually be sufficient. Under severe icing conditions, an increase of 500 grams or more may be required.

I'm sure 40 km/hr winds would qualify as “high surface winds” and 200 to 300 grams is 7 to 10.5 ounces. This means out balloon only had 5 ounces more free lift then required to over come the effect of the wind if filled with the correct amount of helium to provide 1 lb of free lift and about 5 ounces of free lift is what the balloon appeared to have in the wind so I'm sure we had close to the 1 lb of free lift normally required and that our balloon would have surely overcome the terrain turbulence induced by high surface winds if we had known and provided an additional 200 to 300 grams of free lift.
